![Sectional Perspective of Church [below] and Giftshop [above] 'Cluster'](https://static.wixstatic.com/media/6c49c3_1ec5358c943d49889f7d489b2d2ed0c6~mv2.jpg/v1/fill/w_564,h_475,al_c,q_80,usm_0.66_1.00_0.01,enc_avif,quality_auto/6c49c3_1ec5358c943d49889f7d489b2d2ed0c6~mv2.jpg)
Sectional Perspective of Church [below] and Giftshop [above] 'Cluster'

7 Clusters Sectional Perspective across Princes Street Gardens Valley

Altered Perception: 'authentic' spaces preserved underground

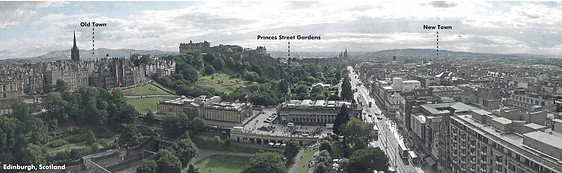

Princes Street Gardens: meeting point of Old & New Town

Site Plan: designated area of focus

Picturesque Valley Destroyed by Industrial Railway

Site Perspective: carvings & extensions done to the gardens

Cleansing the Landscape: identified surrounding programming to be moved within the valley
Archiving the City: Edinburgh
Edinburgh has taken on numerous personas over the course of its existence. The city has come to represent the tale of two towns compiled of different lives, riddled with unique histories. The Old Town, primarily built in the 12th century, followed the typical Medieval “fishbone” layout and was contained within walls to protect the castle from English attacks. The New Town, built in the late 18th century, was the result of overcrowding. What is often overlooked is the land that lies between these two narratives - the gently carved valley, a natural product of melted ice that currently holds the Princes’ Street Gardens; an archive to the city of Edinburgh.
So, why is it that such a beautiful, lush piece of land was treated with such neglect for so many years?
Through rigorous studies of Edinburgh’s layered past, a clear perception of the city has emerged. In a city so well defined by its landscape, it is only appropriate to create an architecture defined by the context, both physically and contextually, resulting in a shift in the perception of Edinburgh’s coveted valley
Location: Princes Street Gardens, Edinburgh
Project Type: Academic
Date: Sep. 2019 - Jun. 2020
Portfolio:
Technical Report:
Independent Study: Masters Part 1



![Key Components of Selected Strip: Castle [New Town], Ross Band Stand, Old Town](https://static.wixstatic.com/media/6c49c3_baa3b56541fe41488bcc6e9cb9525e38~mv2.jpg/v1/crop/x_94,y_154,w_4825,h_3252/fill/w_563,h_379,al_c,q_80,usm_0.66_1.00_0.01,enc_avif,quality_auto/6c49c3_baa3b56541fe41488bcc6e9cb9525e38~mv2.jpg)



Satirical Collage: temporary & artificial above, permanent & authentic below
Physical Model with 7 Section Cuts: constructed for further investigations
Selected Section of the Valley: for further analysis
Key Components of Selected Strip: Castle [New Town], Ross Band Stand, Old Town
Physical Model with Vertical Section Cuts to better Understand the Piece of Land
Conceptual Collage: landscape maintained between floating structure and buried buildings
Placement of 'Clusters': clusters portrayed in strip would actually be closer to related buildings

Wood Columns connect Church, Theatre, & Exhibition Below to Temporary Spaces Above






![Materialistic Section: use of natural materials such as wood [below] & stone [above]](https://static.wixstatic.com/media/6c49c3_b48185f509424926a212869ef81097c7~mv2.jpg/v1/crop/x_99,y_83,w_4779,h_3376/fill/w_561,h_396,al_c,q_80,usm_0.66_1.00_0.01,enc_avif,quality_auto/6c49c3_b48185f509424926a212869ef81097c7~mv2.jpg)


!['Pod' [Exploded] Axonometric and Potential Programming Layout](https://static.wixstatic.com/media/6c49c3_4eb7c49787144d3c95d5af4f547e71a1~mv2.jpg/v1/crop/x_236,y_248,w_6598,h_4803/fill/w_562,h_409,al_c,q_80,usm_0.66_1.00_0.01,enc_avif,quality_auto/6c49c3_4eb7c49787144d3c95d5af4f547e71a1~mv2.jpg)

unobstructed sunlight pours down on the alter while partially obstructed sunlight dawns the font

water gradually seeps down the backing of the alter and font demonstrating the natural decay of the wood cladding

wind used in a sustainable manner to ventilate the space

unobstructed sunlight pours down on the alter while partially obstructed sunlight dawns the font
Technical Report




Perspective of Proposed Princes Street Gardens West
Ground Level Perspective Looking Up at Floating 'Clusters'
Sectional Perspective: lightwells above alter & entrance / font
Perspective Plan: captures stereotomic built-in furniture throughout the church
Plan: church layout
Section: Church Layout
Materialistic Section: use of natural materials such as wood [below] & stone [above]
Experiential Moments with Natural Materials: weathering, lighting, heating
Structural Details: timber column at grade; at ceiling; at floor
'Pod' [Exploded] Axonometric and Potential Programming Layout
